RADIATOR
EN450A1 454LTD 1985 USA CALIFORNIA CANADA

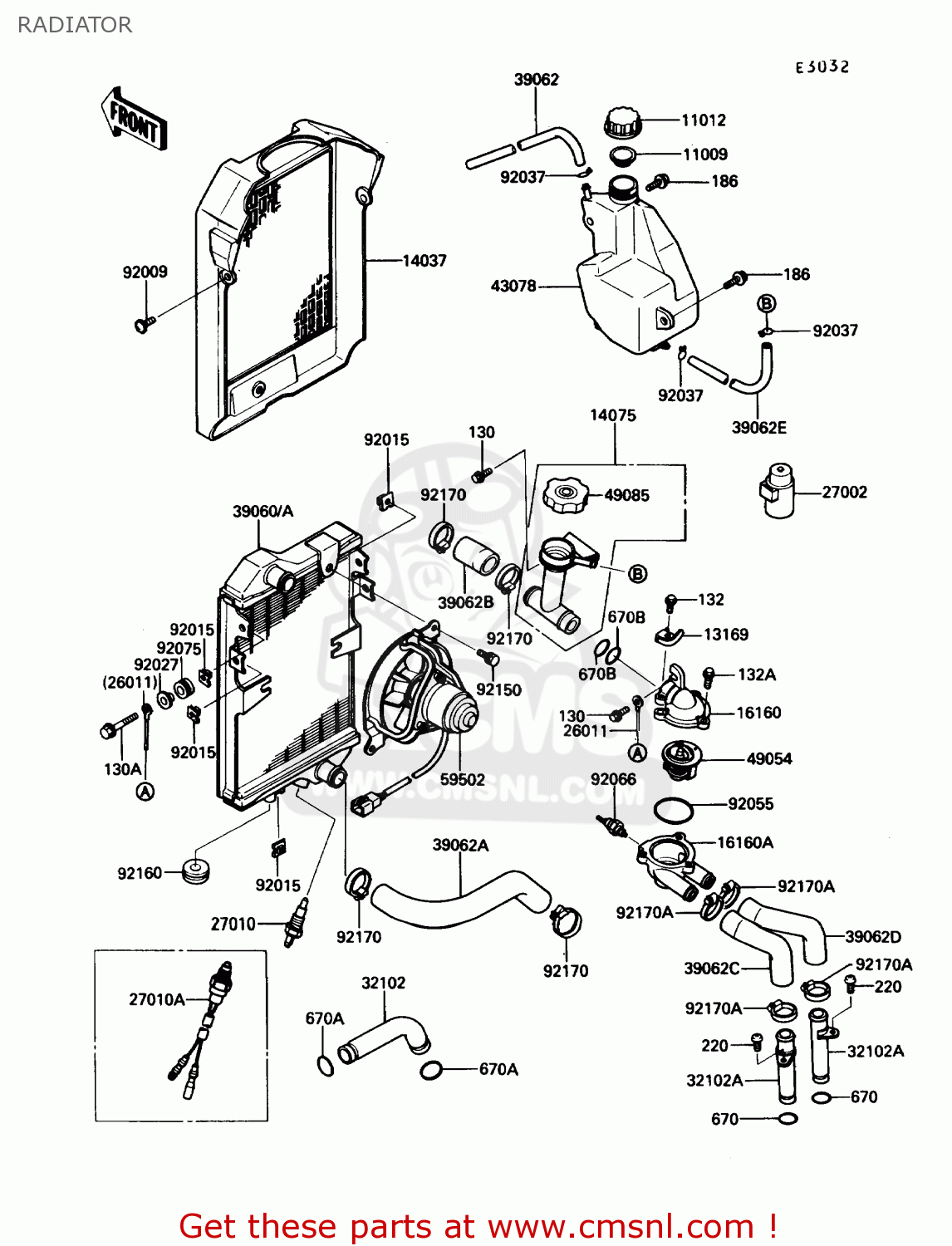

Radiator diagram EN450A1 454LTD 1985 USA CALIFORNIA CANADA
RADIATOR EN450A1 454LTD 1985 USA CALIFORNIA CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130G0614
ref: 130
BOLT,FLANGED,6X14
€ 0.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
132
132G0612
ref: 132
BOLT-FLANGED-SMALL
€ 1.50
132A
132G0620
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
13169
131691901
ref: 13169
PLATE
€ 5.50
14037
140371068
ref: 14037
SCREEN,RADIATOR
€ 61.50
14075
140751056
ref: 14075
CAP-ASSY,RADIATOR
€ 133.50
16160
161601085
ref: 16160
BODY,THERMOSTAT,UPP
€ 39.00
16160A
161601138
ref: 16160A
BODY,THERMOSTAT,LWR
€ 24.50
26011
260111278
ref: 26011
WIRE-LEAD
€ 4.00
27002
270021051
ref: 27002
RELAY-ASSY
€ 32.00
27010
270101167
ref: 27010
SWITCH,FAN
€ 108.50
32102
321021014
ref: 32102
PIPE
€ 29.50
32102A
321021473
ref: 32102A
PIPE
€ 25.50
39060
390601062
ref: 39060
RADIATOR
€ 592.50
39062
390621060
ref: 39062
HOSE-COOLING,5.5X10.5
€ 17.00
39062A
390621106
ref: 39062A
HOSE-COOLING
€ 25.00
39062B
390621107
ref: 39062B
HOSE-COOLING
€ 8.50
39062C
390621108
ref: 39062C
HOSE-COOLING
€ 15.00
39062D
390621109
ref: 39062D
HOSE-COOLING
€ 15.50
39062E
390621110
ref: 39062E
HOSE-COOLING,5.5X10.5
€ 25.00
43078
430781060
ref: 43078
RESERVOIR
€ 39.00
49054
490541055
ref: 49054
THERMOSTAT
€ 39.50
49085
490851057
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
59502
595021054
ref: 59502
FAN-ASSY
€ 460.00
92009
920091288
ref: 92009
SCREW,6X14
€ 2.00
92015
920151487
ref: 92015
NUT
€ 3.00
92027
920271767
ref: 92027
COLLAR
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
920551279
ref: 92055
RING-O,45MM
€ 4.50
92066
920661118
ref: 92066
PLUG,SENSOR WATOR
€ 50.00
92075
920751680
ref: 92075
DAMPER
€ 4.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
920371989
ref: 92170
CLAMP
€ 13.00
92170A
921701077
ref: 92170A
CLAMP,COOLING HOSE
€ 6.50
186
186J0618
ref: 186
BOLT-UPSET-WP
€ 2.50
220
220B0612
ref: 220
SCREW-PAN HEAD,6X12
€ 1.00
670
670B2014
ref: 670
O RING,14MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
670B
670B2022
ref: 670B
O RING,22MM
€ 3.00
