HEADLIGHT(S)
EL250E4 ELIMINATOR 1994 CANADA

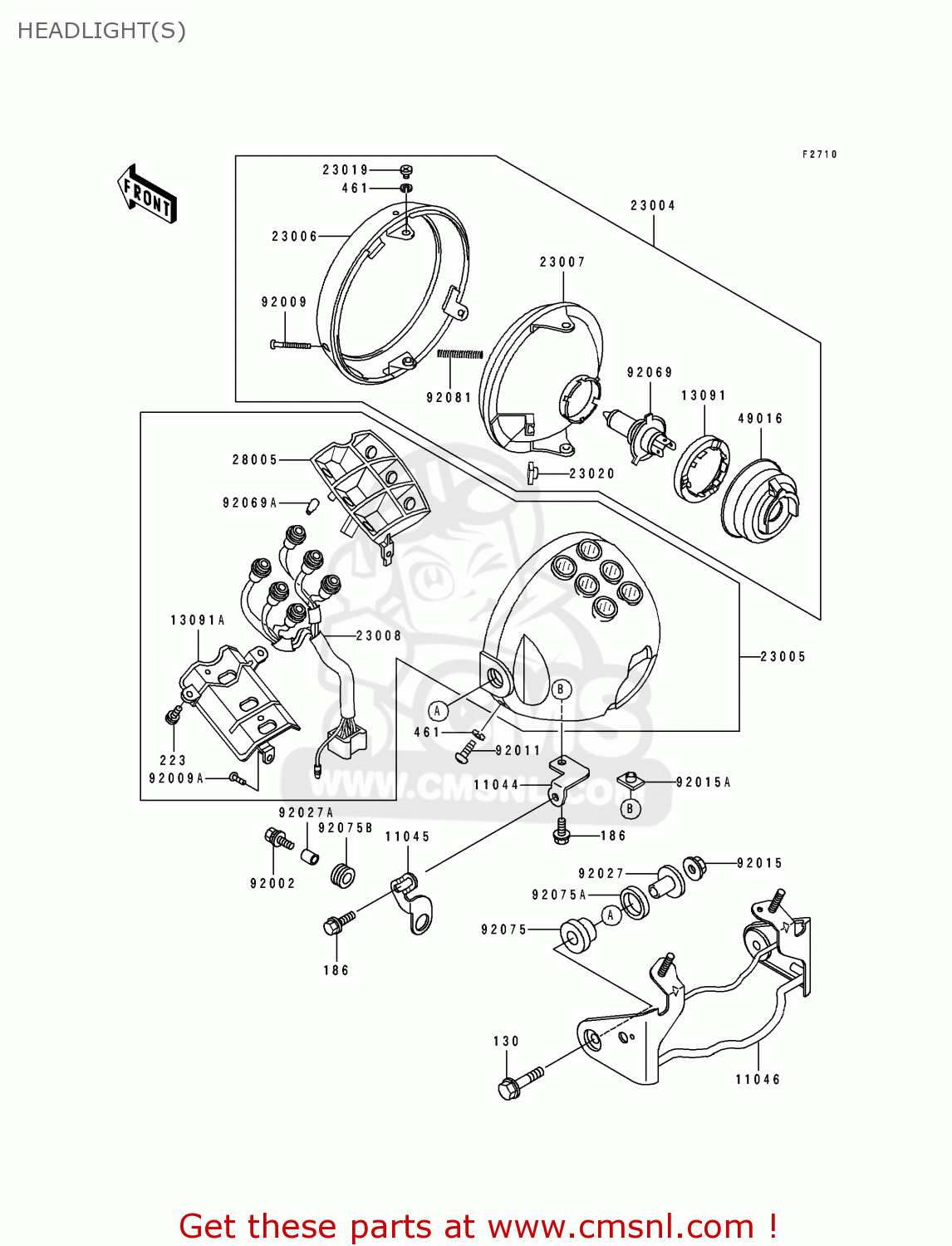

Headlight(s) diagram EL250E4 ELIMINATOR 1994 CANADA
HEADLIGHT(S) EL250E4 ELIMINATOR 1994 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130C0840
ref: 130
BOLT-FLANGED,8X40
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
223
223D0410
ref: 223
SCREW-PAN-WS-CROS
€ 2.50
461
461F0500
ref: 461
WASHER-SPRING,5MM
€ 0.50
11044
110441915
ref: 11044
BRACKET,HEAD LAMP,LWR
€ 6.50
11045
110451789
ref: 11045
BRACKET,HEAD LAMP,LWR
€ 6.50
11046
110461761
ref: 11046
BRACKET,HEAD LAMP STA
€ 54.00
13091
130911386
ref: 13091
HOLDER
€ 7.50
13091A
130911387
ref: 13091A
HOLDER,HEAD LAMP
€ 17.50
23004
230041188
ref: 23004
LAMP-HEAD
€ 203.00
23005
230051076H8
ref: 23005
BODY-COMP-HEAD LAMP,E
€ 335.00
23006
230061057
ref: 23006
RIM-LAMP
€ 36.00
23007
230071136
ref: 23007
LENS-COMP
€ 102.00
23008
230081316
ref: 23008
SOCKET-ASSY,HEAD LAMP
€ 55.00
23019
23019031
ref: 23019
SCREW,LENS FITTING
€ 2.50
23020
23020012
ref: 23020
NUT,ADJUSTING
€ 2.50
28005
280051053
ref: 28005
BODY-LAMP,INDICATOR
€ 20.00
49016
490161110
ref: 49016
COVER-SEAL
€ 8.50
92002
920021137
ref: 92002
BOLT,6X25
€ 2.50
92009
920091394
ref: 92009
SCREW
€ 3.00
92009A
920091395
ref: 92009A
SCREW
€ 2.50
92011
92011024
ref: 92011
SCREW-PAN HEAD,5MM
€ 2.00
92015
920151014
ref: 92015
NUT,8MM
€ 0.50
92015A
920151231
ref: 92015A
NUT,6MM,HEAD LAMP
€ 6.50
92027
920271131
ref: 92027
COLLAR,HEAD LAMP FITT
€ 6.00
92027A
92027162
ref: 92027A
COLLAR-REAR FENDER
€ 4.50
92069
920691002
ref: 92069
BULB,12V-60155W
€ 15.00
92069A
920691020
ref: 92069A
BULB,12C3W T-7
€ 3.00
92075
920751109
ref: 92075
DAMPER,HEAD LAMP FITT
€ 4.00
92075A
920751110
ref: 92075A
DAMPER,HEAD LAMP FITT
€ 3.00
92075B
92075209
ref: 92075B
DAMPER RUBBER
€ 3.00
92081
920811892
ref: 92081
SPRING
€ 3.00
