FRONT HUB
EL250E3 ELIMINATOR 1993 NETHERLANDS FG

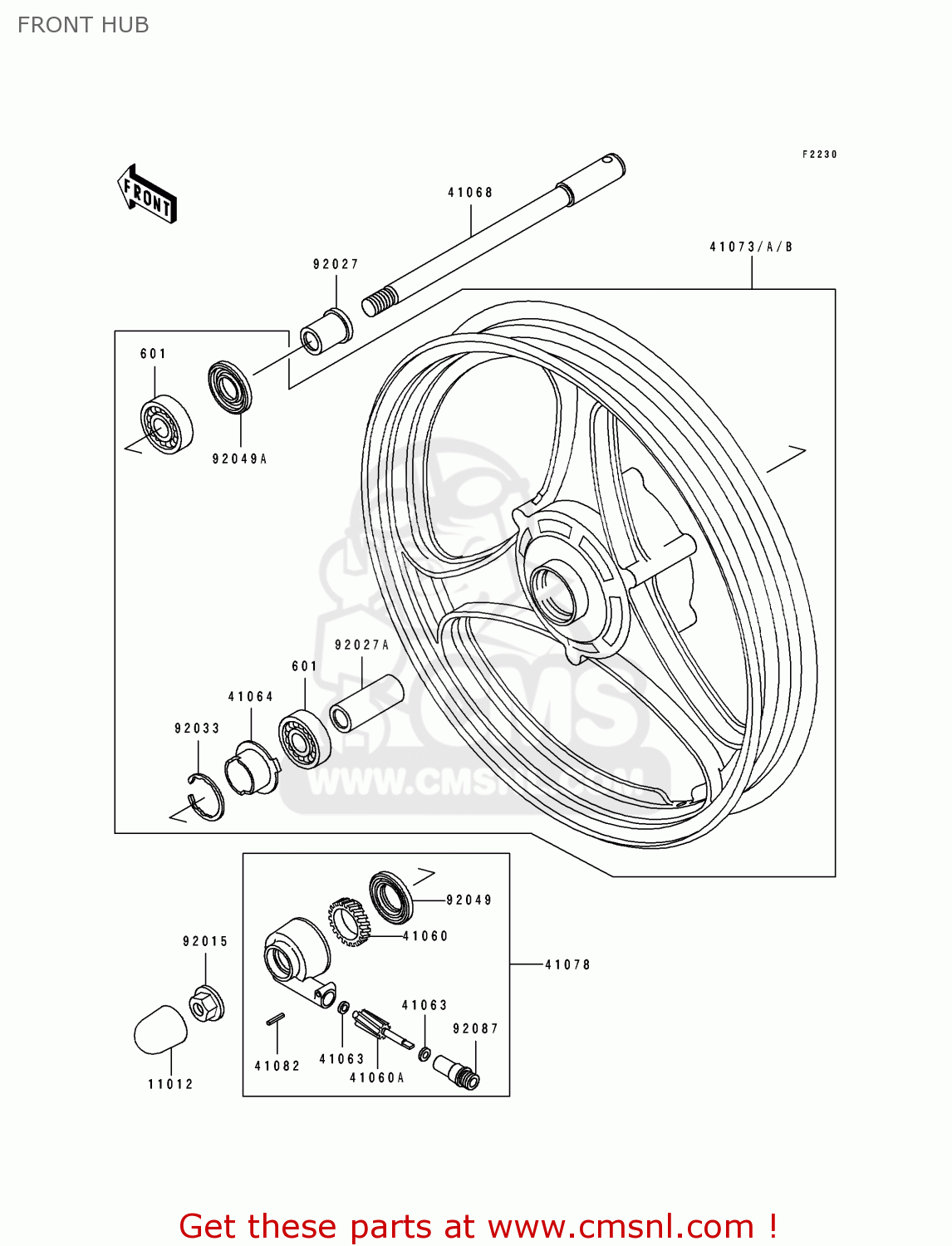

Front hub diagram EL250E3 ELIMINATOR 1993 NETHERLANDS FG
FRONT HUB EL250E3 ELIMINATOR 1993 NETHERLANDS FG
×
prices are in EUR
ref
part #
description
quantity
601
601B6202UG
ref: 601
BEARING BALL
€ 19.50
11012
110121591
ref: 11012
FG
CAP,AXLE NUT
€ 3.00
41060
410601025
ref: 41060
GEAR,SPEEDOMETER
€ 18.50
41060A
410601035
ref: 41060A
GEAR-METER SCREW,9T
€ 18.50
41063
41063001
ref: 41063
WASHER-THRST SPD PINI
€ 3.00
41064
410641006
ref: 41064
RECEIVER,SPEEDOMETER
€ 9.50
41068
410681238
ref: 41068
AXLE,FR
€ 49.00
41073A
410731528JF
ref: 41073A
WHEEL-ASSY,FR,GRAY
€ 574.00
41078
410781028
ref: 41078
CASE-ASSY-METER GEAR,
€ 97.50
41082
41082001
ref: 41082
PIN-SPRING
€ 2.50
92015
920151407
ref: 92015
NUT,14MM
€ 6.50
92027
920271118
ref: 92027
COLLAR,L=34
€ 10.00
92027A
920271980
ref: 92027A
COLLAR,15.2X22X60
€ 9.50
92033
920331041
ref: 92033
CIRCLIP,42MM
€ 4.00
92049
920491057
ref: 92049
OIL SEAL,BJN30427-C3
€ 7.50
92049A
920491348
ref: 92049A
SEAL-OIL
€ 7.50
92087
920871002
ref: 92087
BUSHING-METER GEAR
€ 14.50
