RADIATOR
EL250E3 ELIMINATOR 1993 CANADA

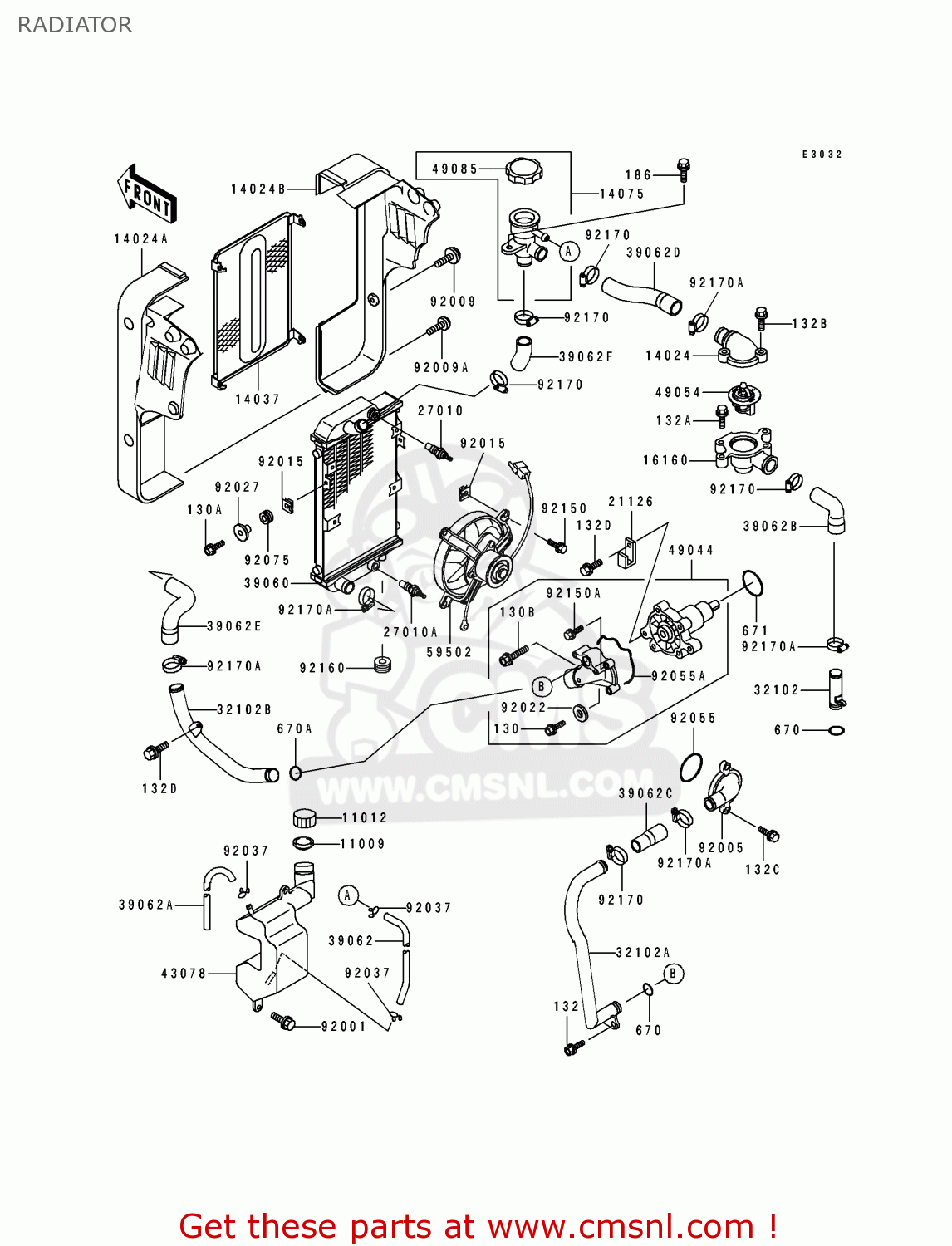

Radiator diagram EL250E3 ELIMINATOR 1993 CANADA
RADIATOR EL250E3 ELIMINATOR 1993 CANADA
×
prices are in EUR
ref
part #
description
quantity
11009
110091145
ref: 11009
GASKET,RESERVOIR TANK (NAS)
€ 1.00
11012
110121084
ref: 11012
CAP
€ 1.50
14024
140241232
ref: 14024
COVER,THERMOSTAT UPP
€ 43.00
14024A
140241755
ref: 14024A
COVER,RADIATOR,LH
€ 20.00
14024B
140241756
ref: 14024B
COVER,RADIATOR,RH
€ 10.00
14037
140371093
ref: 14037
SCREEN
€ 31.50
14075
140751072
ref: 14075
CAP-ASSY,RADIATOR
€ 124.00
16160
161601139
ref: 16160
BODY,THERMOSTAT
€ 21.00
21126
21126008
ref: 21126
CLAMP,WIRING HARNESS
€ 3.00
27010
270101173
ref: 27010
SWITCH
€ 84.00
27010A
270101304
ref: 27010A
SWITCH,THERMOSTAT
€ 63.00
32102
321021021
ref: 32102
PIPE,HEAD-THERMOSTAT
€ 17.50
32102A
321021624
ref: 32102A
PIPE,PUMP-CYLINDER
€ 41.50
32102B
321021625
ref: 32102B
PIPE,RADIATOR-PUMP
€ 28.50
39060
390601086
ref: 39060
RADIATOR
€ 499.00
39062
390621069
ref: 39062
HOSE-COOLING,5.5X10.5
€ 25.00
39062A
390621110
ref: 39062A
HOSE-COOLING,5.5X10.5
€ 25.00
39062B
390621170
ref: 39062B
HOSE-COOLING,HEAD-THE
€ 14.00
39062C
390621246
ref: 39062C
HOSE-COOLING,PUMP-CYL
€ 7.50
39062D
390621247
ref: 39062D
HOSE-COOLING,THERMOST
€ 12.50
39062E
390621248
ref: 39062E
HOSE-COOLING,RADIATOR
€ 14.50
39062F
390621249
ref: 39062F
HOSE-COOLING,CAP-RADI
€ 7.00
43078
430781088
ref: 43078
RESERVOIR
€ 24.50
49044
490441064
ref: 49044
PUMP-WATER
€ 244.00
49054
490541058
ref: 49054
THERMOSTAT
€ 41.00
49085
490851067
ref: 49085
CAP-ASSY-PRESSURE
€ 39.50
59502
595021073
ref: 59502
FAN-ASSY
€ 333.00
92001
920011516
ref: 92001
BOLT,W/WASHER,6X12
€ 3.00
92005
920051145
ref: 92005
FITTING,CYLINDER
€ 22.50
92009
920091402
ref: 92009
SCREW,6X10
€ 1.50
92009A
920091488
ref: 92009A
SCREW
€ 3.00
92015
920151487
ref: 92015
NUT
€ 3.00
92022
920221976
ref: 92022
WASHER,6.2X6.2X1.0
€ 4.00
92027
920271767
ref: 92027
COLLAR
€ 3.50
92037
92037147
ref: 92037
CLAMP,CHAIN OILER
€ 4.50
92055
92055091
ref: 92055
0 RING
€ 4.00
92055A
920551432
ref: 92055A
RING-O
€ 7.50
92075
920751680
ref: 92075
DAMPER
€ 4.00
92150
921501186
ref: 92150
BOLT
€ 3.00
92150A
921501562
ref: 92150A
BOLT, FLANGED 6X18
€ 2.50
130
130C0610
ref: 130
BOLT-FLANGED,6X10,BLA
€ 1.50
130A
130J0625
ref: 130A
BOLT-FLANGED,6X25
€ 2.00
130B
130J0635
ref: 130B
BOLT-FLANGED,6X35
€ 3.00
132
132E0612
ref: 132
BOLT-FLANGED-SMALL
€ 3.50
132A
132G0612
ref: 132A
BOLT-FLANGED-SMALL
€ 1.50
132B
132G0625
ref: 132B
BOLT-FLANGED-SMALL
€ 3.00
132C
132J0616
ref: 132C
BOLT-FLANGED-SMALL
€ 3.00
132D
132J0630
ref: 132D
BOLT-FLANGED-SMALL
€ 2.50
186
186C0614
ref: 186
BOLT-UPSET-WP
€ 2.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
670A
670B2018
ref: 670A
O RING,18MM
€ 1.00
671
671D2535
ref: 671
O RING
€ 4.00
92160
921601007
ref: 92160
DAMPER
€ 3.50
92170
921701033
ref: 92170
CLAMP,COOLING HOSE
€ 10.50
92170A
921701286
ref: 92170A
CLAMP
€ 13.00
