FRONT FORK

EL250E1 ELIMINATOR 1991 USA CALIFORNIA CANADA

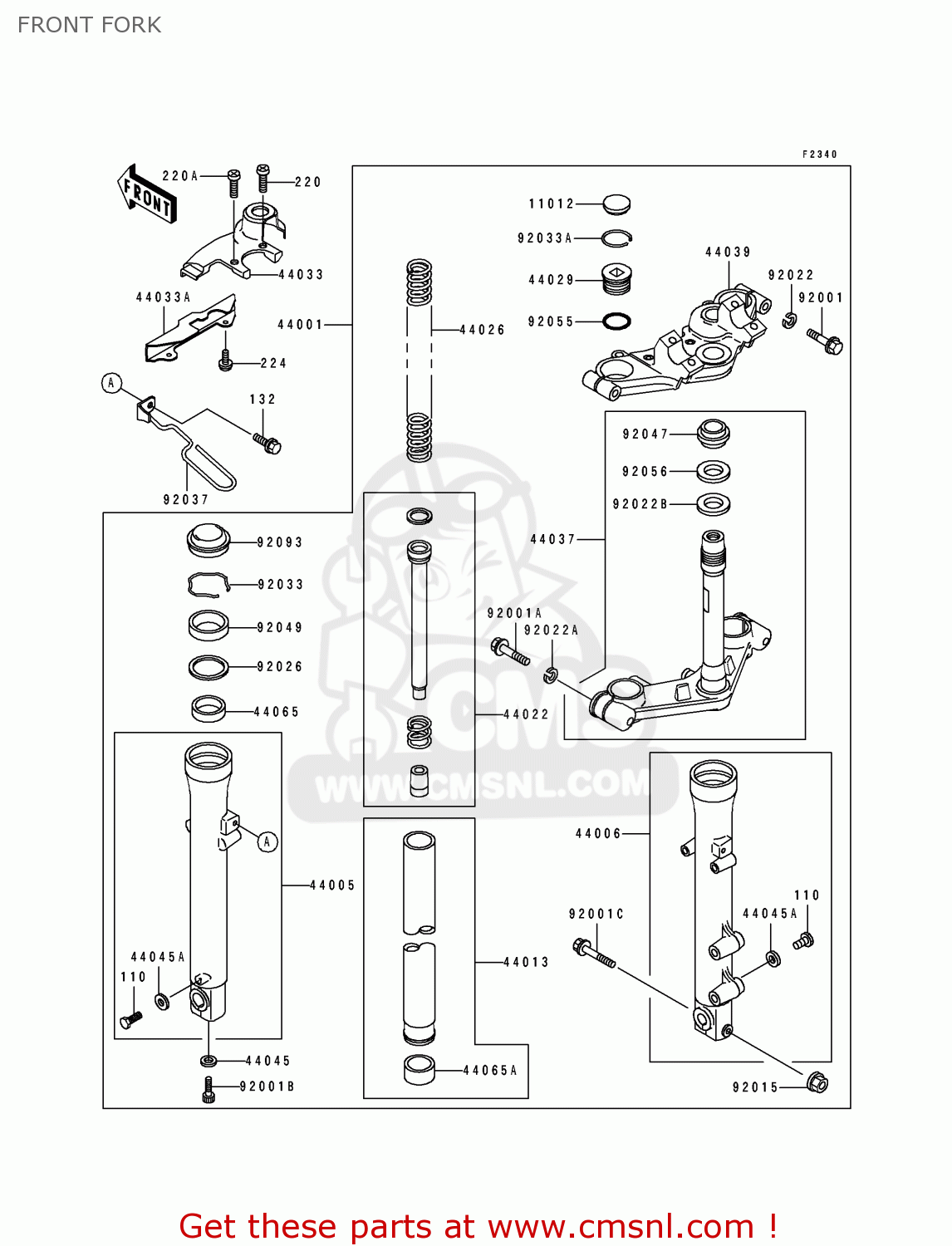

Front fork diagram EL250E1 ELIMINATOR 1991 USA CALIFORNIA CANADA

FRONT FORK EL250E1 ELIMINATOR 1991 USA CALIFORNIA CANADA
FRONT FORK EL250E1 ELIMINATOR 1991 USA CALIFORNIA CANADA
FRONT FORK EL250E1 ELIMINATOR 1991 USA CALIFORNIA CANADA
prices are in EUR
ref
part #
description
quantity
110
110B0608
ref: 110
BOLT-HEX HEAD,6X8
€ 0.50
132
132E0610
ref: 132
BOLT-FLANGED-SMALL
132E0610
€ 2.50
220
220E0510
ref: 220
SCREW-PAN-CROS
€ 2.50
220A
220E0518
ref: 220A
SCREW-PAN-CROS,5X18
€ 2.50
224
224B0508
ref: 224
SCREW-PAN-WP-CROS
€ 0.50
11012
110121620
ref: 11012
CAP,FORK TOP
€ 7.50
44001
440011666
ref: 44001
FORK-FRONT
€ 1,313.50
44005
440051266
ref: 44005
PIPE-LEFT FORK OUTER
€ 345.00
44006
440061263
ref: 44006
PIPE-RIGHT FORK OUTER
€ 329.50
44013
440131270
ref: 44013
PIPE-FORK INNER
440131270
€ 176.50
44022
440221217
ref: 44022
CYLINDER-FORK
€ 90.00
44026
440261374
ref: 44026
SPRING-FRONT FORK
€ 20.50
44029
440291124
ref: 44029
SEAT-FORK SPRING
440291124
€ 29.50
44033
440331176
ref: 44033
COVER-FORK,UPPER BRAC
€ 26.50
44033A
440331181
ref: 44033A
COVER-FORK
440331181
€ 11.50
44037
440371222
ref: 44037
HOLDER-FORK UNDER
€ 274.00
44039
440391159
ref: 44039
HOLDER-FORK UPPER
€ 238.50
44045
44045051
ref: 44045
GASKET,FORK CYLINDER (NAS)
44045051
€ 4.00
44045A
44045052
ref: 44045A
GASKET,DRAIN PLUG (NAS)
€ 6.00
44065
440651068
ref: 44065
BUSHING-FRONT FORK
440651068
€ 16.00
44065A
440651069
ref: 44065A
BUSHING-FRONT FORK,IN
440651069
€ 16.50
92001
920011063
ref: 92001
BOLT,HEX HEAD,8X40
920011063
€ 6.50
92001A
920011454
ref: 92001A
BOLT
920011454
€ 6.50
92001B
920011464
ref: 92001B
BOLT
920011464
€ 4.00
92001C
920011486
ref: 92001C
BOLT,FLANGED,8X50
920011486
€ 7.50
92015
920151055
ref: 92015
NUT,8M/M
€ 3.00
92022
920221703
ref: 92022
WASHER,SPRING,8MM
€ 2.00
92022A
920221704
ref: 92022A
WASHER,SPRING,10MM
920221704
€ 2.00
92022B
92022231
ref: 92022B
WASHER,PLAIN
92022231
€ 3.00
92026
920261038
ref: 92026
SPACER,FORK
920261038
€ 6.50
92033
920331219
ref: 92033
RING-SNAP,FORK
€ 4.00
92033A
920331220
ref: 92033A
RING-SNAP,FORK TOP
920331220
€ 6.00
92037
920371922
ref: 92037
CLAMP,CABLE
€ 15.50
92047
92047012
ref: 92047
CONE-STRNG STM BRNG
92047012
€ 14.50
92049
920491226
ref: 92049
SEAL-OIL,FORK
920491226
€ 14.50
92055
920551359
ref: 92055
RING-O,FORK SPRING SE
920551359
€ 6.00
92056
92056003
ref: 92056
OIL SEAL,STEERING STM
92056003
€ 6.00
92093
920931196
ref: 92093
SEAL,FORK
920931196
€ 15.50
