REAR HUB

EL250E1 ELIMINATOR 1991 EUROPE FR IT

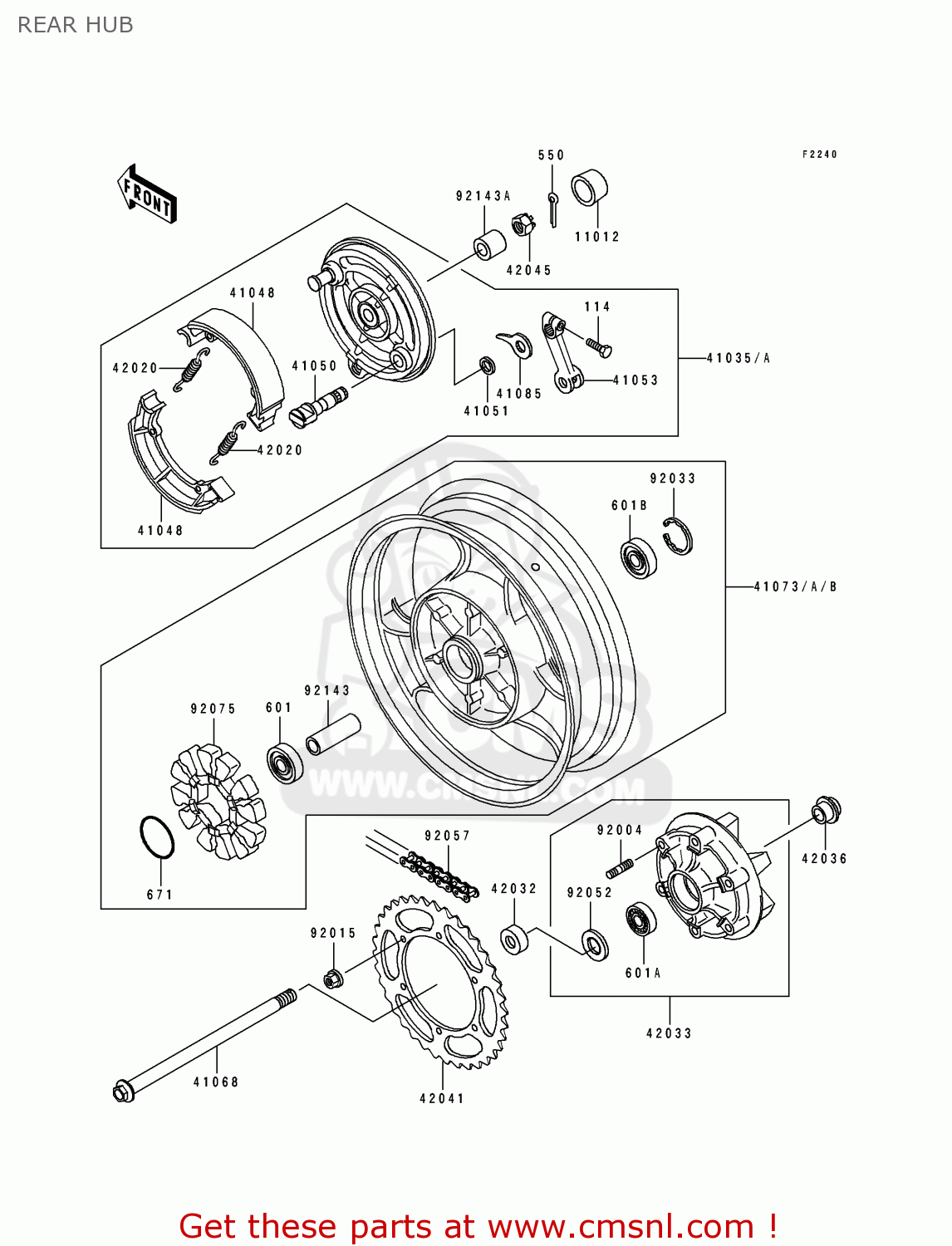

Rear hub diagram EL250E1 ELIMINATOR 1991 EUROPE FR IT

REAR HUB EL250E1 ELIMINATOR 1991 EUROPE FR IT
REAR HUB EL250E1 ELIMINATOR 1991 EUROPE FR IT
REAR HUB EL250E1 ELIMINATOR 1991 EUROPE FR IT
prices are in EUR
ref
part #
description
quantity
114
114G0828
ref: 114
BOLT-SMALL,8X28
€ 2.50
550
550D4035
ref: 550
PIN-COTTER,4.0X35
550D4035
€ 1.00
601
601B6203ZZ
ref: 601
BEARING-BALL,#6203ZZC
601B6203ZZ
€ 16.50
601A
601B6205G
ref: 601A
BEARING BALL
601B6205G
€ 14.00
601B
601B6303ZZ
ref: 601B
BEARING-BALL,#6303ZZC
601B6303ZZ
€ 32.50
671
671B2550
ref: 671
O RING,50MM
671B2550
€ 1.50
41035
410351251
ref: 41035
PANEL-ASSY-BRAKE,RR
€ 223.00
41048
410481069
ref: 41048
SHOE-BRAKE (NAS)
410481069
€ 26.00
41050
410501065
ref: 41050
CAM-BRAKE
410501065
€ 29.00
41051
41051003
ref: 41051
DUST SHIELD-BRAKE CAM
41051003
€ 2.50
41053
410531068
ref: 41053
LEVER-BRAKE CAM
€ 49.00
41068
410681192
ref: 41068
AXLE,RR
410681192
€ 65.50
41073
410731462HY
ref: 41073
WHEEL-ASSY,RR,G.GRAY
€ 468.50
41085
410851060
ref: 41085
INDICATOR
€ 9.00
42020
42020004
ref: 42020
SPRING-BRAKE SHOE
42020004
€ 5.50
42032
42032068
ref: 42032
COLLAR,17X35X17.5
42032068
€ 18.00
42033
420331107
ref: 42033
COUPLING-ASSY,RR HUB
€ 222.50
42036
420361055
ref: 42036
SLEEVE,L=25
420361055
€ 19.00
42041
420411292
ref: 42041
SPROCKET-HUB,44T
420411292
€ 38.50
42045
42045014
ref: 42045
NUT CASTLE, 16M/M
42045014
€ 6.50
92004
920041111
ref: 92004
STUD,10X21
920041111
€ 6.50
92015
920151720
ref: 92015
NUT,10MM
920151720
€ 3.50
92033
920331042
ref: 92033
CIRCLIP,47M/M
920331042
€ 4.00
92052
92052006
ref: 92052
OIL SEAL WTC35527
92052006
€ 6.50
92057
920571240
ref: 92057
CHAIN,DRIVE,EK520SV-O
€ 80.00
92075
920751436
ref: 92075
DAMPER,RR HUB SHOCK
920751436
€ 65.00
92143
921431124
ref: 92143
COLLAR,17.2X25X105
921431124
€ 14.00
92143A
921431125
ref: 92143A
COLLAR,17.2X30X23.5
€ 7.50
