CARBURETOR PARTS
EL250D7 ELIMINATOR 1996 EUROPE GR

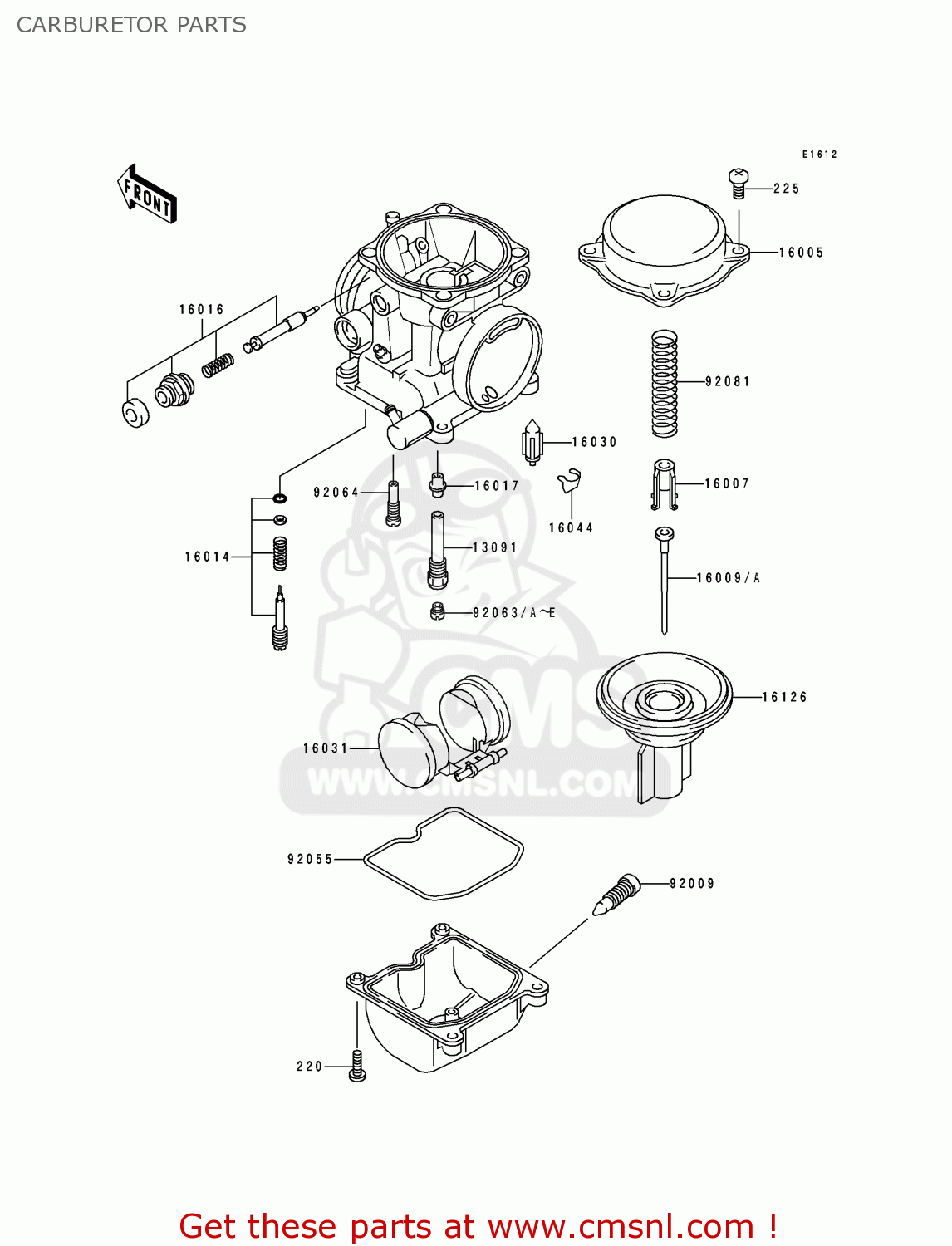

Carburetor parts diagram EL250D7 ELIMINATOR 1996 EUROPE GR
CARBURETOR PARTS EL250D7 ELIMINATOR 1996 EUROPE GR
×
prices are in EUR
ref
part #
description
quantity
220
220D0414
ref: 220
SCREW-PAN-CROS
€ 2.00
225
225C0418
ref: 225
SCREW-PAN-WSP-CROS
€ 2.50
13091
130911406
ref: 13091
HOLDER,NEEDLE JET
€ 19.00
16005
160051056
ref: 16005
TOP-CHAMBER,MIXING
€ 48.50
16007
160071120
ref: 16007
SEAT-SPRING
€ 16.50
16009
160091896
ref: 16009
NEEDLE-JET,N2WH
€ 23.00
16009A
160091897
ref: 16009A
NEEDLE-JET,N2WK
€ 23.00
16014
160141080
ref: 16014
SCREW-PILOT AIR
€ 15.00
16016
160161090
ref: 16016
PLUNGER,STARTER
€ 46.50
16017
160171253
ref: 16017
JET-NEEDLE
€ 36.50
16030
160301007
ref: 16030
FLOAT VALVE ASSY
€ 37.00
16031
160311077
ref: 16031
FLOAT
€ 39.00
16044
16044007
ref: 16044
CLIP, FLOAT VALVE
€ 4.00
16126
161261159
ref: 16126
VALVE,VACUUM
€ 176.50
92009
920091551
ref: 92009
SCREW,DRAIN
€ 6.50
92055
920551222
ref: 92055
RING-O,FLOAT CHAMBER
€ 12.50
92063
920631003
ref: 92063
MAIN JET, 2ND, # 90
€ 9.50
92063A
920631004
ref: 92063A
JET-MAIN,#92
€ 10.00
92063B
920631023
ref: 92063B
JET-MAIN,#85
€ 9.50
92063C
920631024
ref: 92063C
JET-MAIN,#88
€ 10.00
92063D
920631037
ref: 92063D
JET-MAIN,#80
€ 9.00
92063E
920631044
ref: 92063E
JET-MAIN,#82
€ 10.00
92064
920641035
ref: 92064
JET-PILOT,#35
€ 12.50
92081
920811775
ref: 92081
SPRING,VACUUM VALVE
€ 17.00
