TAILLIGHT(S)
EL250B2 ELIMINATOR 1988 USA CALIFORNIA

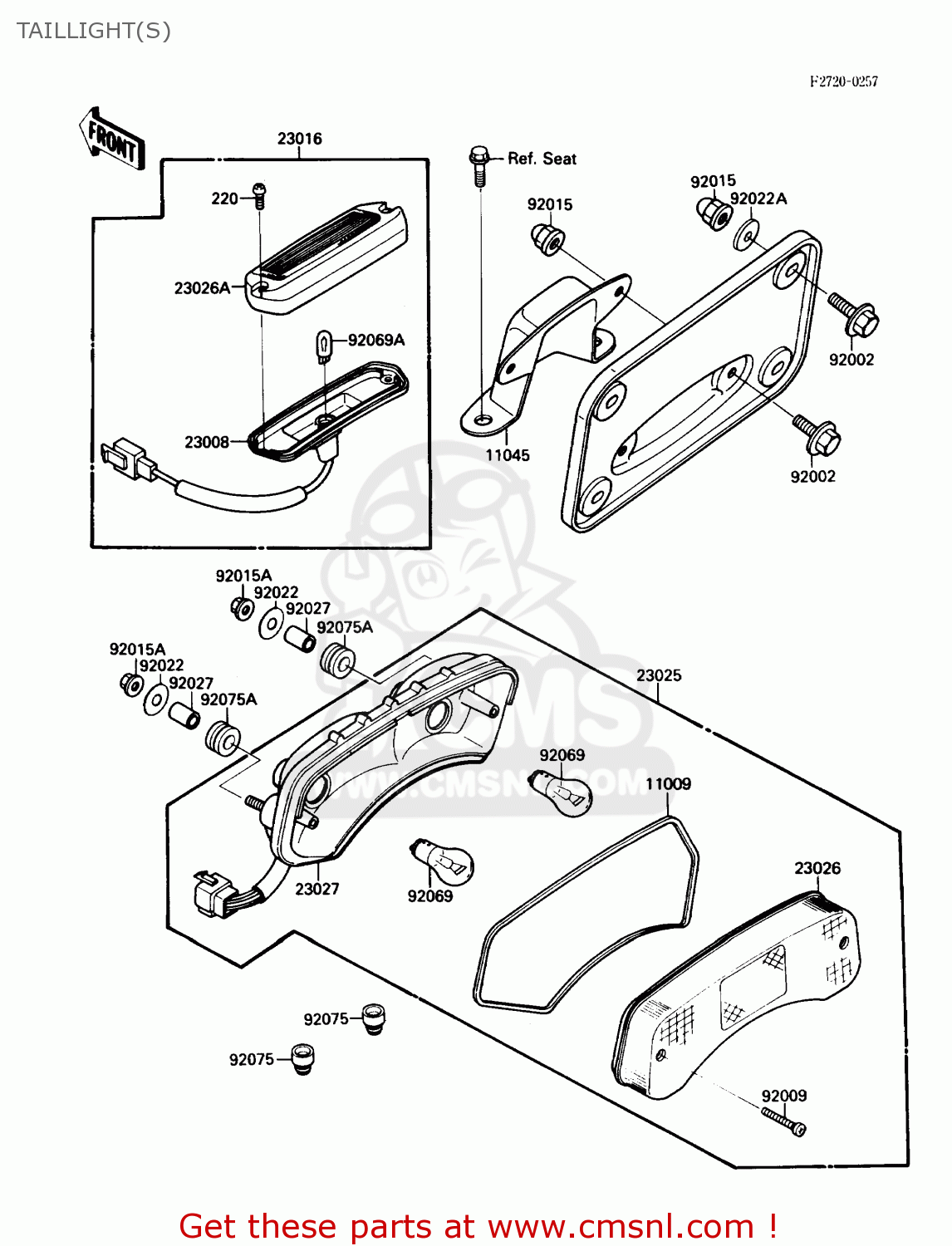

Taillight(s) diagram EL250B2 ELIMINATOR 1988 USA CALIFORNIA
TAILLIGHT(S) EL250B2 ELIMINATOR 1988 USA CALIFORNIA
×
prices are in EUR
ref
part #
description
quantity
220
220C0420
ref: 220
SCREW-PAN-CROS,4X20
€ 0.50
11009
110091524
ref: 11009
GASKET,TAIL LAMP LENS (NAS)
€ 4.00
11045
110451797
ref: 11045
LICENSE PLATE BRACKET
€ 9.00
13091
130911500
ref: 13091
HOLDER,LICENSE PLATE
€ 16.00
23008
230081348
ref: 23008
LICENSE LAMP SOCKET ASSEMBLY
€ 13.50
23016
230161091
ref: 23016
LAMP ASSY FOR EL250
€ 28.00
23025
230251123
ref: 23025
LAMP-TAIL
€ 231.00
23026
230261068
ref: 23026
LENS,TAIL LAMP
€ 65.00
23026A
230261069
ref: 23026A
LENS,LICENSE LAMP
€ 13.50
23027
230271062
ref: 23027
TAIL LAMP BODY,COMPLETE
€ 231.00
92002
920011950
ref: 92002
BOLT,6X16
€ 2.50
92009
920091056
ref: 92009
SCREW,TAPPING
€ 2.50
92015
920151170
ref: 92015
NUT,CAP 6MM,BLACK
€ 0.50
92015A
920151193
ref: 92015A
NUT,FLANGED,6MM
€ 0.50
92022
92022125
ref: 92022
WASHER,6.5X20X1.6
€ 1.00
92022A
920221346
ref: 92022A
WASHER,6.5X20X1.6,BLA
€ 0.50
92027
92027162
ref: 92027
COLLAR-REAR FENDER
€ 4.50
92069
92069059
ref: 92069
BULB,12V 32/3CP
€ 5.50
92069A
920691007
ref: 92069A
BULB,12V3.4W
€ 2.50
92075
92075035
ref: 92075
DAMPER
€ 3.00
92075A
920751690
ref: 92075A
DAMPER,10X24X12
€ 3.00
