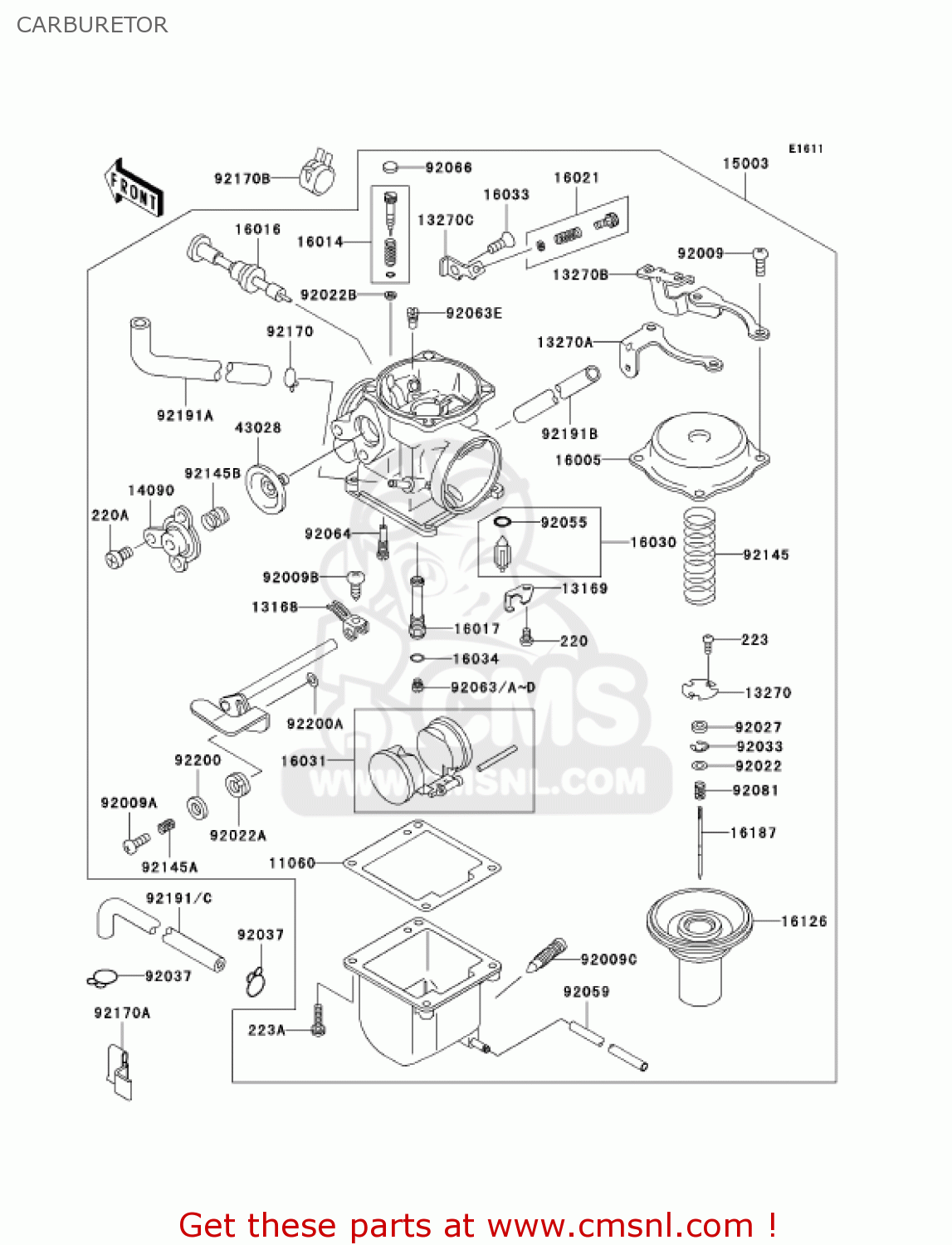

CARBURETOR

ref

part #

description

quantity

11060

110601849
ref: 11060

GASKET,FLOAT CHAMBER (NAS)

€ 5.50

13168

131681642
ref: 13168

LEVER,STARTER

€ 26.00

13169

131691482
ref: 13169

PLATE,FLOAT VALVE

€ 4.00

13270

132701981
ref: 13270

PLATE,VACUUM VALVE

€ 5.00

13270A

132701982
ref: 13270A

PLATE,LH

€ 12.50

13270B

132701983
ref: 13270B

PLATE,RH

€ 12.50

13270C

132701984
ref: 13270C

PLATE,THROTTLE STOP S

€ 10.50

14090

140901931
ref: 14090

COVER,AIR CUT VALVE

€ 8.50

15003

150031627
ref: 15003

CARBURETOR-ASSY

€ 197.50

16005

160051087
ref: 16005

TOP-CHAMBER

€ 35.50

16014

160141117
ref: 16014

SCREW-PILOT AIR

€ 17.00

16016

160161106
ref: 16016

PLUNGER

€ 30.00

16017

160171432
ref: 16017

JET-NEEDLE,0-8M

€ 25.50

16021

160211217
ref: 16021

SCREW-THROTTLE STOP

€ 14.00

16030

160301086
ref: 16030

VALVE-FLOAT

€ 41.50

16031

160311094
ref: 16031

FLOAT

€ 37.50

16033

16033024
ref: 16033

SCREW,5X8

€ 3.50

16034

16034001
ref: 16034

WASHER-MAIN JET

€ 2.50

16126

161261352
ref: 16126

VALVE,VACUUM

€ 113.00

16187

161871188
ref: 16187

NEEDLE-JET,4C17

€ 21.00

43028

430281026
ref: 43028

DIAPHGRAM,COASTING RC

€ 124.50

92009

920091126
ref: 92009

SCREW,5X10,BLACK

€ 0.50

92009A

920091823
ref: 92009A

SCREW,STARTER LEVER

€ 7.00

92009B

920091824
ref: 92009B

SCREW,STARTER

€ 2.00

92009C

920091826
ref: 92009C

SCREW,DRAIN

€ 6.00

92022

920221123
ref: 92022

WASHER,JET NEEDLE

€ 5.50

92022A

920221147
ref: 92022A

WASHER,PLAIN,DURACON

€ 5.00

92022B

920221187
ref: 92022B

WASHER,ADJUST SCREW

€ 4.00

92027

920271103
ref: 92027

RING,JET NEEDLE

€ 4.50

92033

920331290
ref: 92033

RING-SNAP

€ 3.00

92037

920371610
ref: 92037

CLAMP

€ 1.50

92055

920551105
ref: 92055

RING-0

€ 3.00

92059

920591243
ref: 92059

TUBE,3X5X220,OVRFLOW

€ 5.00

92063

920631100
ref: 92063
(OPTION)

JET-MAIN,#A127.5

€ 9.50

92063A

920631101
ref: 92063A
(OPTION)

JET-MAIN,#A122.5

€ 9.50

92063B

920631102
ref: 92063B

JET-MAIN,#A125

€ 9.50

92063C

920631103
ref: 92063C
(OPTION)

JET-MAIN,#A130

€ 9.50

220

220B0406
ref: 220

SCREW-PAN-CROS,4X6

€ 2.50

220A

220D0410
ref: 220A

SCREW-PAN-CROS

€ 2.00

223

223B0307
ref: 223

SCREW-PAN-WS-CROS

€ 2.50

223A

223B0414
ref: 223A

SCREW PAN-WS-CROS

€ 2.50

92063D

920631106
ref: 92063D
(OPTION)

JET-MAIN,#A120

€ 11.50

92063E

920632059
ref: 92063E

JET-MAIN,#70

€ 12.00

92064

920641230
ref: 92064

JET-PILOT,#32.5

€ 12.50

92066

920661501
ref: 92066

PLUG,PILOT AIR SCREW

€ 2.50

92081

920811126
ref: 92081

SPRING,JET NEEDLE

€ 4.00

92145

921451124
ref: 92145

SPRING,VACUUM VALVE

€ 6.50

92145A

921451125
ref: 92145A

SPRING,STARTER LEVER

€ 2.50

92145B

921451127
ref: 92145B

SPRING,AIR CUT VALVE

€ 7.50

92170

921701818
ref: 92170

CLAMP

€ 3.50

92170A

921701936
ref: 92170A

CLAMP

€ 3.00

92170B

921702043
ref: 92170B

CLAMP

€ 1.00

92191

921911210
ref: 92191
[CN,US

TUBE,L=115

€ 2.50

92191A

921911244
ref: 92191A

TUBE

€ 6.50

92191B

921911245
ref: 92191B

TUBE,5X8X300

€ 13.50

92191C

921911623
ref: 92191C
[CA]

TUBE,L=66.8

€ 0.00

92200

922001397
ref: 92200

WASHER,STARTER LEVER

€ 2.00

92200A

922001398
ref: 92200A

WASHER,STARTER LEVER

€ 2.00
