CARBURETOR
AR80C4 1986 USA / MPH

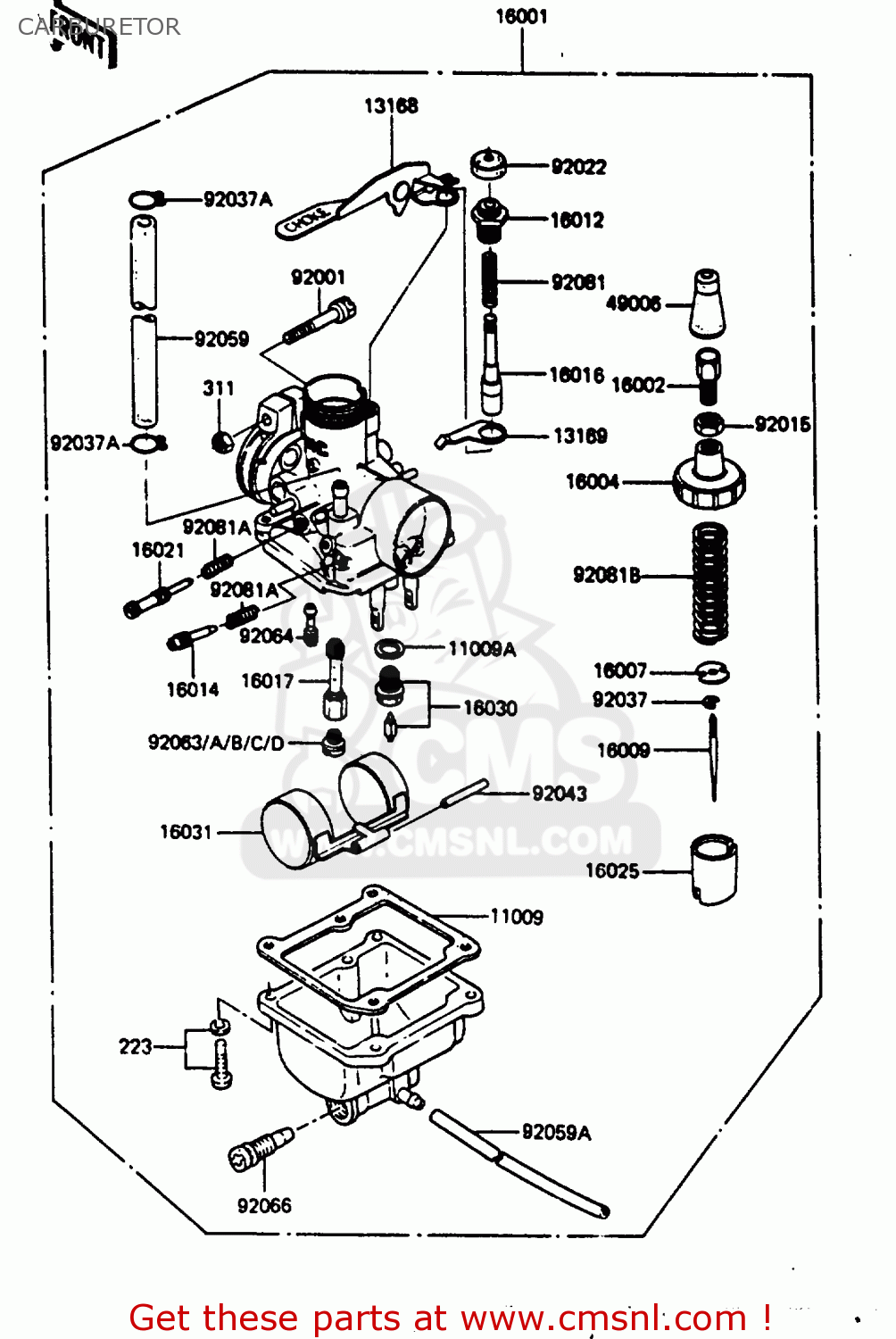

Carburetor diagram AR80C4 1986 USA / MPH
CARBURETOR AR80C4 1986 USA / MPH
×
prices are in EUR
ref
part #
description
quantity
11009
110091250
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
€ 6.50
11009A
16029002
ref: 11009A
WASHER-VALVE SEAT
€ 2.50
13168
131681101
ref: 13168
LEVER,STARTER PLUNGER
€ 10.50
13169
131691438
ref: 13169
PLATE,STARTER PLUNGER
€ 5.50
16001
160011906
ref: 16001
CARBURETOR
€ 218.00
16002
160021008
ref: 16002
ADJUSTER-CABLE
€ 6.50
16004
160041012
ref: 16004
CAP-CHAMBER
€ 16.50
16007
160071044
ref: 16007
SEAT-SPRING
€ 3.50
16009
160091151
ref: 16009
NEEDLE-JET,4M08
€ 21.00
16012
16012016
ref: 16012
CAP-STARTER PLUNGER
€ 6.50
16014
160141031
ref: 16014
SCREW-PILOT AIR
€ 12.00
16016
160161020
ref: 16016
PLUNGER,STARTER
€ 26.00
16017
160171137
ref: 16017
JET-NEEDLE,O-5
€ 26.50
16021
160211036
ref: 16021
SCREW-THROTTLE STOP
€ 10.00
16025
160251074
ref: 16025
VALVE-THROTTLE,CA2.5
€ 71.50
16030
160301017
ref: 16030
VALVE-FLOAT
€ 31.00
16031
160311013
ref: 16031
FLOAT
€ 46.00
49006
16036007
ref: 49006
BOOT,CABLE ADJUSTER
€ 10.50
92001
920011476
ref: 92001
BOLT,CARBURETOR CLAMP
€ 3.00
92015
16003006
ref: 92015
NUT-CABLE ADJUST LOCK
€ 4.50
92022
16039013
ref: 92022
WASHER-PLAIN
€ 1.50
92037
16006010
ref: 92037
SPRING-THROTTLE VALVE
€ 4.50
92037A
92037072
ref: 92037A
CLAMP,TUBE
€ 4.00
92043
16032003
ref: 92043
FLOAT PIN
€ 4.00
92059
920591023
ref: 92059
HOSE,FUEL TAP DIAPHRA
€ 17.00
92059A
920591243
ref: 92059A
TUBE,3X5X220,OVRFLOW
€ 5.00
92063
92063053
ref: 92063
MAIN JET,#70
€ 6.00
92063A
92063056
ref: 92063A
MAIN JET,#127.5R
€ 9.50
92063B
92063077
ref: 92063B
JET-MAIN,#117.5R
€ 10.00
92063C
92063078
ref: 92063C
MAIN JET,#120R
€ 11.50
92063D
92063100
ref: 92063D
MAIN JET,#122.5R
€ 9.50
92064
92064020
ref: 92064
JET-PILOT,#17.5
€ 13.50
92066
920661064
ref: 92066
SCREW,DRAIN
€ 8.50
92081
16013008
ref: 92081
SPRING-STARTER PLUNG
€ 4.50
92081A
920811153
ref: 92081A
SPRING,AIR SCREW
€ 3.00
92081B
920811400
ref: 92081B
SPRING,THROTTLE VALVE
€ 6.00
223
223B0414
ref: 223
SCREW PAN-WS-CROS
€ 2.50
311
311B0600
ref: 311
NUT,6MM
€ 0.50
