CARBURETOR

AR50C2 1984 UNITED KINGDOM GR ST

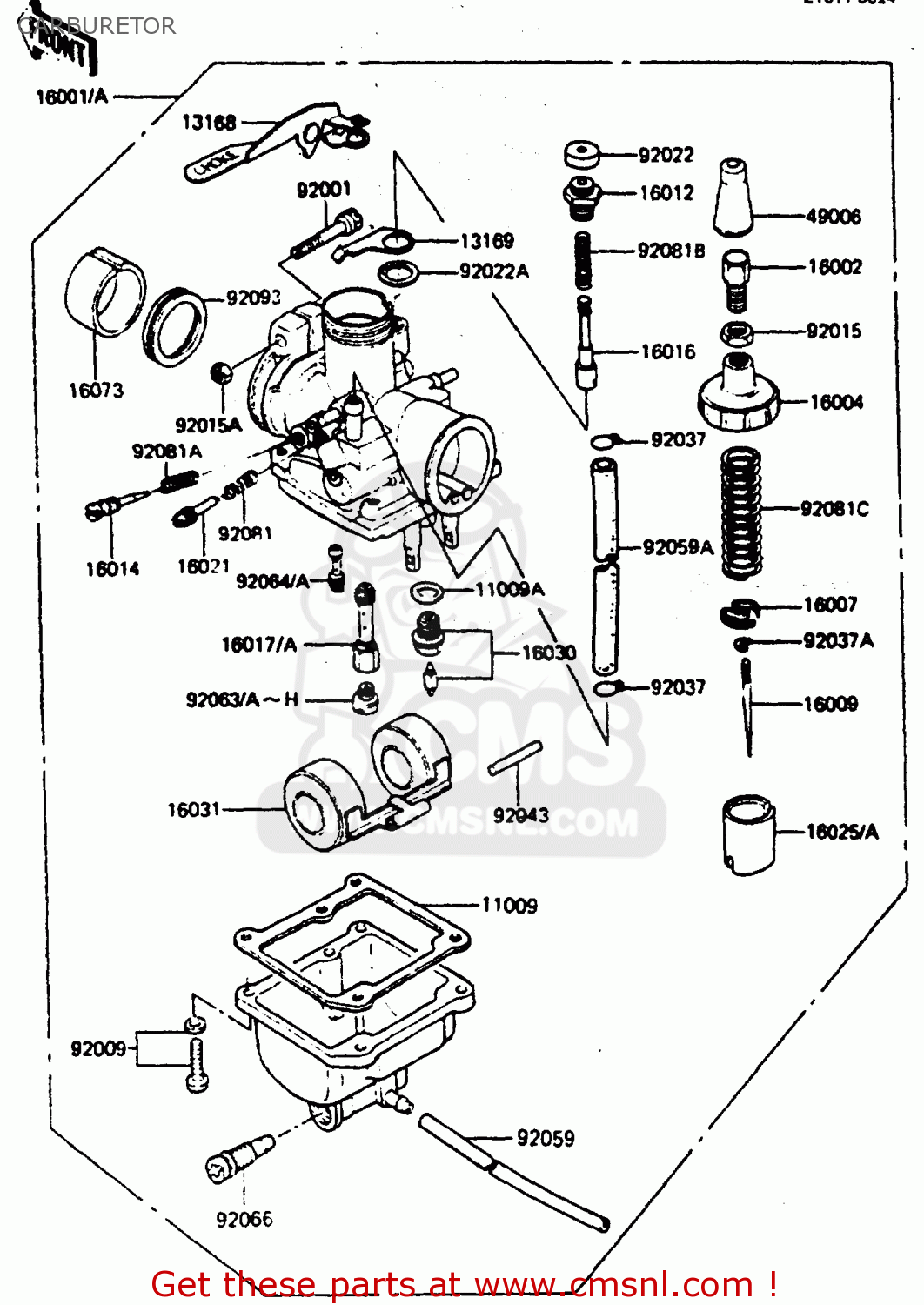

Carburetor diagram AR50C2 1984 UNITED KINGDOM GR ST

CARBURETOR AR50C2 1984 UNITED KINGDOM GR ST
CARBURETOR AR50C2 1984 UNITED KINGDOM GR ST
CARBURETOR AR50C2 1984 UNITED KINGDOM GR ST
prices are in EUR
ref
part #
description
quantity
11009
16019011
ref: 11009
GASKET,FLOAT CHAMBER (NAS)
16019011
€ 10.00
11009A
16029002
ref: 11009A
WASHER-VALVE SEAT
16029002
€ 2.50
13168
131681347
ref: 13168
LEVER,STARTER
131681347
€ 14.50
13169
131691437
ref: 13169
PLATE,STARTER PLUNGER
131691437
€ 6.00
16001
160011340
ref: 16001
GR, ST
CARBURETOR
160011340
€ 223.00
16001A
160011368
ref: 16001A
UK
CARBURETOR
160011368
€ 223.00
16002
160021008
ref: 16002
ADJUSTER-CABLE
160021008
€ 6.50
16004
160041011
ref: 16004
CAP-CHAMBER
160041011
€ 34.50
16007
160071116
ref: 16007
SEAT-SPRING
160071116
€ 4.50
16009
160091092
ref: 16009
NEEDLE-JET,3I7-3
160091092
€ 22.50
16012
16012016
ref: 16012
CAP-STARTER PLUNGER
16012016
€ 6.50
16014
160141030
ref: 16014
SCREW-PILOT AIR
160141030
€ 9.50
16016
160161002
ref: 16016
PLUNGER STARTER
160161002
€ 23.50
16017
160171090
ref: 16017
UK
JET-NEEDLE,D-9
160171090
€ 25.00
16017A
160171094
ref: 16017A
GR, ST
JET-NEEDLE,D-8
€ 27.00
16021
160211036
ref: 16021
SCREW-THROTTLE STOP
160211036
€ 10.00
16025
160251059
ref: 16025
UK
VALVE-THROTTLE,CA2.0
160251059
€ 65.00
16025A
160251061
ref: 16025A
GR, ST
VALVE-THROTTLE,CA2.5
€ 68.50
16030
160301017
ref: 16030
VALVE-FLOAT
160301017
€ 31.00
16031
160311014
ref: 16031
FLOAT
160311014
€ 31.50
16073
160731011
ref: 16073
INSULATOR
160731011
€ 8.00
49006
16036007
ref: 49006
BOOT,CABLE ADJUSTER
16036007
€ 10.50
92001
920011476
ref: 92001
BOLT,CARBURETOR CLAMP
920011476
€ 3.00
92009
16033012
ref: 92009
SCREW-FLOAT CHAMBER
16033012
€ 1.00
92013
16003006
ref: 92013
NUT-CABLE ADJUST LOCK
16003006
€ 4.50
92015A
920151154
ref: 92015A
NUT
€ 2.50
92022
16039015
ref: 92022
CAP,STARTER PLUNGER
16039015
€ 4.50
92022A
920221271
ref: 92022A
WASHER
€ 3.00
92037
92037072
ref: 92037
CLAMP,TUBE
92037072
€ 4.00
92037A
920371272
ref: 92037A
CLAMP
920371272
€ 4.00
92043
16032003
ref: 92043
FLOAT PIN
16032003
€ 4.00
92059
920591015
ref: 92059
TUBE,OVERFLOW,3X5X200
€ 4.00
92059A
920591023
ref: 92059A
HOSE,FUEL TAP DIAPHRA
€ 17.00
92063
92063072
ref: 92063
UK
MAIN JET,#105R
€ 10.50
92063A
92063073
ref: 92063A
UK
JET-MAIN,#107.5R
92063073
€ 9.50
92063B
92063074
ref: 92063B
UK
MAIN JET,#110R
€ 10.50
92063C
92063075
ref: 92063C
MAIN JET,#112.5R
92063075
€ 10.00
92063D
92063076
ref: 92063D
GR, ST
MAIN JET,#115R
92063076
€ 5.50
92063E
92063076
ref: 92063E
UK
MAIN JET,#115R
92063076
€ 5.50
92063F
92063077
ref: 92063F
GR, ST
JET-MAIN,#117.5R
92063077
€ 10.00
92063G
92063078
ref: 92063G
GR, ST
MAIN JET,#120R
92063078
€ 11.50
92063H
920631038
ref: 92063H
GR, ST
JET-MAIN,#A110
920631038
€ 10.50
92064
92064020
ref: 92064
UK
JET-PILOT,#17.5
92064020
€ 13.50
92064A
92064047
ref: 92064A
GR, ST
PILOT JET, #A15
€ 13.00
92066
920661064
ref: 92066
SCREW,DRAIN
920661064
€ 8.50
92081
16022007
ref: 92081
SPRING-THR STOP SCREW
16022007
€ 5.50
92081A
920811153
ref: 92081A
SPRING,AIR SCREW
920811153
€ 3.00
92081B
920811398
ref: 92081B
SPRING,STARTER PLUNGE
920811398
€ 4.50
92081C
920811399
ref: 92081C
SPRING,THROTTLE VALVE
920811399
€ 5.50
92093
920931062
ref: 92093
SEAL
920931062
€ 5.50
