CLUTCH
AR125B4 1987 UNITED KINGDOM FRANCE

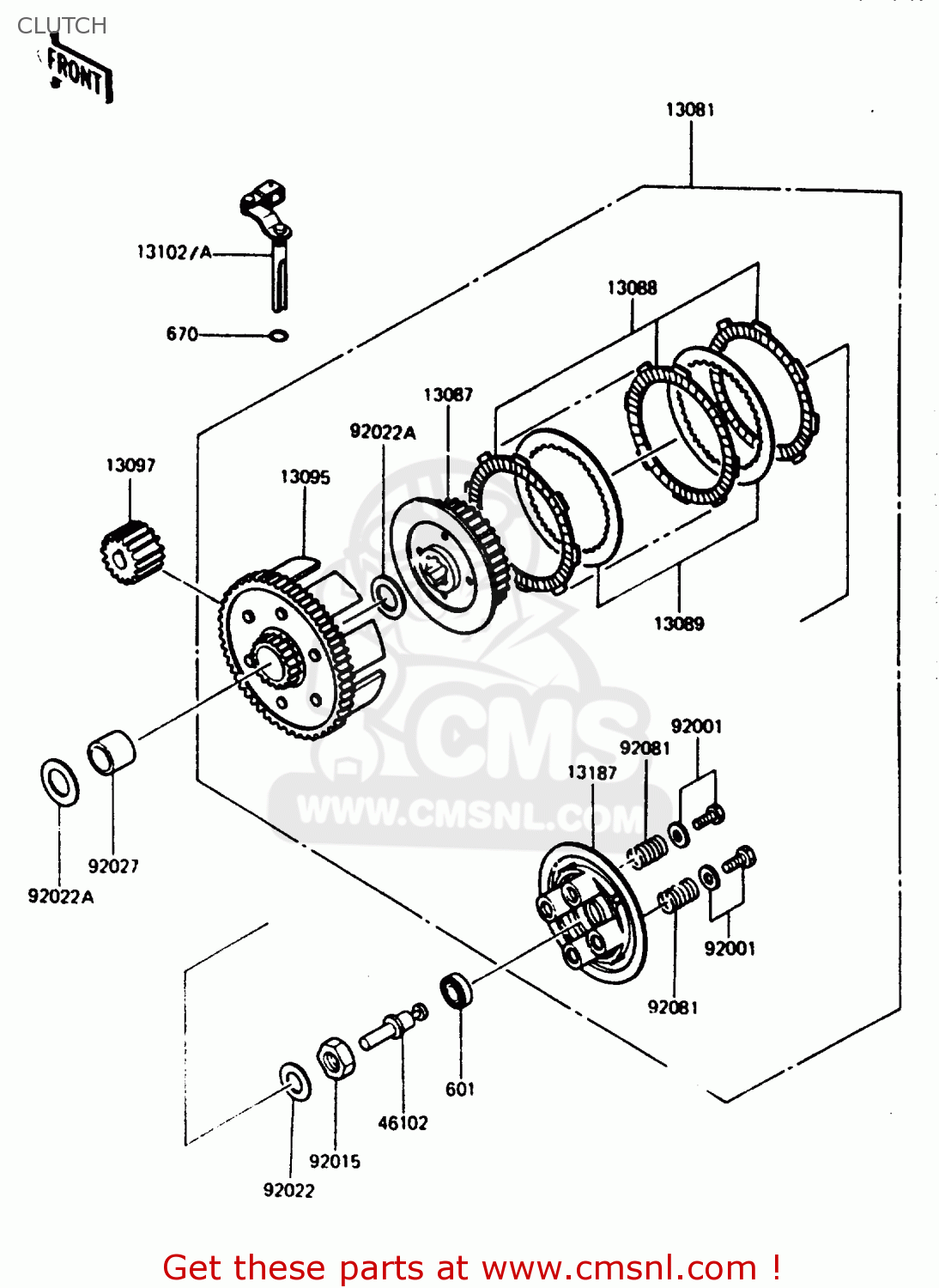

Clutch diagram AR125B4 1987 UNITED KINGDOM FRANCE
CLUTCH AR125B4 1987 UNITED KINGDOM FRANCE
×
prices are in EUR
ref
part #
description
quantity
13081
130811161
ref: 13081
CLUTCH,ASSY
€ 375.00
13087
130871021
ref: 13087
HUB-CLUTCH
€ 73.00
13088
130881016
ref: 13088
PLATE-FRICTION (NAS)
€ 10.00
13089
130891012
ref: 13089
PLATE-CLUTCH (NAS)
€ 8.00
13093
130951105
ref: 13093
HOUSING-COMP-CLUTCH
€ 271.00
13097
130971191
ref: 13097
GEAR-PRIMARY SPUR
€ 62.00
13102A
131021063
ref: 13102A
RELEASE-COMP-CLUTCH
€ 33.50
13187
131871013
ref: 13187
PLATE-CLUTCH OPERATIN (NAS)
€ 32.00
46102
461021049
ref: 46102
ROD,CLUTCH
€ 15.00
92091
920011781
ref: 92091
BOLT
€ 4.50
91015
92015072
ref: 91015
NUT,LOCK,16MM
€ 4.50
92022
920221356
ref: 92022
WASHER,16.3X29X1.75
€ 4.50
92022A
92022168
ref: 92022A
WASHER-CLUTCH THRUST
€ 6.50
92027
920271584
ref: 92027
COLLAR,CLUTCH BUSHING
€ 13.00
92061
920811492
ref: 92061
SPRING,CLUTCH
€ 5.00
601
601B6001
ref: 601
BALL BEARING,#6001C3
€ 15.50
670
670B1509
ref: 670
O RING,9MM
€ 1.00
