Genuine AR Kawasaki Parts delivered quickly!
home
METER (AR125-B1/B2)
AR125B1 1984 FRANCE

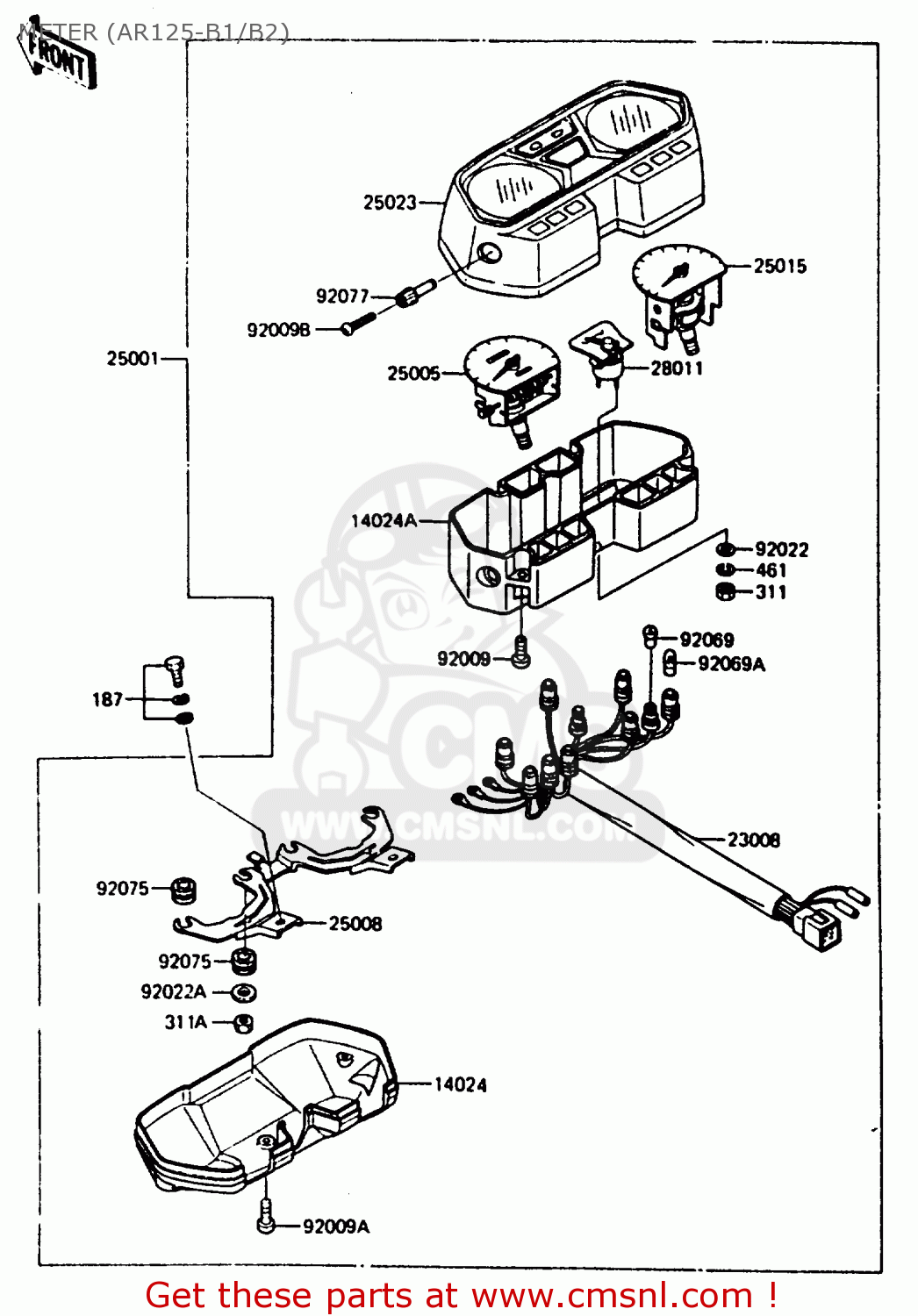

Meter (ar125-b1/b2) diagram AR125B1 1984 FRANCE
METER (AR125-B1/B2) AR125B1 1984 FRANCE
×
prices are in EUR
ref
part #
description
quantity
14026
140251564
ref: 14026
COVER,METER CASE LWR
€ 25.00
14024A
140251604
ref: 14024A
COVER,METER CASE
€ 79.50
23008
230081169
ref: 23008
SOCKET-ASSY,METER
€ 61.00
25001
250011382
ref: 25001
METER-ASSY,MPH
€ 528.00
25005
250051203
ref: 25005
SPEEDOMETER,KPH
€ 208.00
25005
250081052
ref: 25005
BRACKET-METER
€ 32.00
25015
250151133
ref: 25015
TACHOMETER
€ 123.00
25025
250231038
ref: 25025
COVER-METER CASE,UPP
€ 84.00
28011
280111031
ref: 28011
METER,TEMP
€ 65.00
92009
920091163
ref: 92009
SCREW,TAPPING,4X16
€ 2.50
92009A
920091164
ref: 92009A
SCREW,TAPPING,3X16
€ 2.50
92009B
920091172
ref: 92009B
SCREW,2X6,BLACK
€ 2.00
92022
920221374
ref: 92022
WASHER,3MM
€ 2.00
92022A
92022263
ref: 92022A
WASHER,PLAIN,6MM
€ 1.50
92069
92069017
ref: 92069
BULB 12V 1.5W
€ 4.00
92069A
920691007
ref: 92069A
BULB,12V3.4W
€ 2.50
92075
920751385
ref: 92075
DAMPER,METER BRACKET
€ 3.00
92077
920771015
ref: 92077
KNOB,METER
€ 6.00
187
187C0614
ref: 187
BOLT-UPSET-WSP
€ 2.50
311
311B0300
ref: 311
NUT-HEX
€ 0.50
311A
311B0500
ref: 311A
NUT-HEX
€ 0.50
401
461F0300
ref: 401
WASHER-SPRING,3MM
€ 0.50
