METER(S)
AR125A8 1990 UNITED KINGDOM GR NR

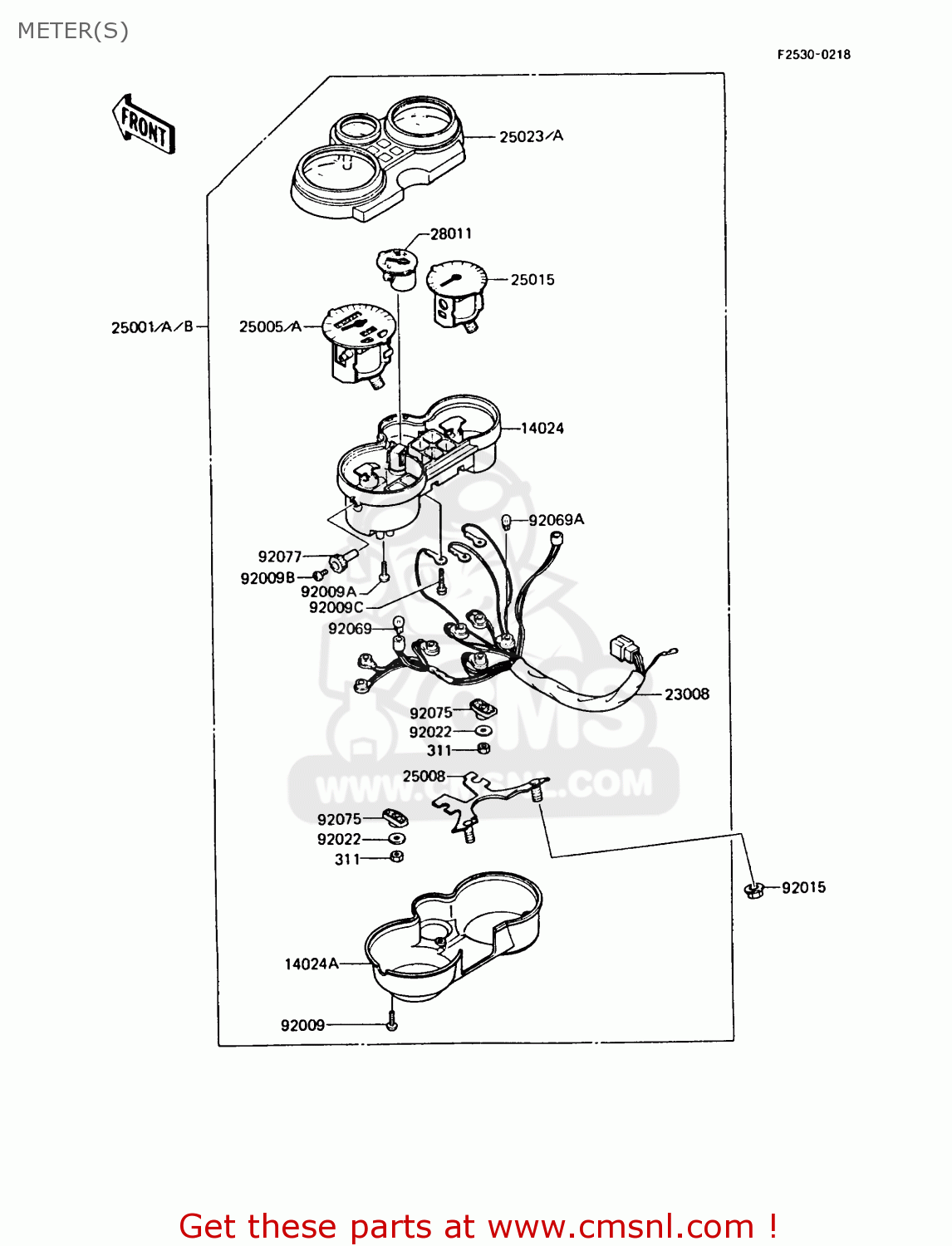

Meter(s) diagram AR125A8 1990 UNITED KINGDOM GR NR
METER(S) AR125A8 1990 UNITED KINGDOM GR NR
×
prices are in EUR
ref
part #
description
quantity
311
311B0500
ref: 311
NUT-HEX
€ 0.50
14024
140241288
ref: 14024
COVER,METER CASE
€ 75.50
14024A
140251919
ref: 14024A
COVER,METER CASE,LWR
€ 32.00
23008
230081312
ref: 23008
SOCKET-ASSY,METER
€ 93.50
25001
250011643
ref: 25001
UK
METER-ASSY,MPH
€ 720.50
25001A
250011644
ref: 25001A
GR
METER-ASSY,KPH
€ 645.00
25001B
250011646
ref: 25001B
NR
METER-ASSY,KPH
€ 625.50
25005
250051329
ref: 25005
UK
SPEEDOMETER,MPH
€ 140.00
25005A
250051330
ref: 25005A
GRNR
SPEEDOMETER,KPH
€ 93.50
25008
250081112
ref: 25008
BRACKET-METER
€ 26.50
25015
250151258
ref: 25015
TACHOMETER,X1000R/MIN
€ 98.50
25023
250231144
ref: 25023
GRUK
COVER-METER CASE,UPP
€ 90.00
25023A
250231145
ref: 25023A
NR
COVER-METER CASE,UPP
€ 103.00
28011
280111085
ref: 28011
METER,TEMP
€ 88.00
92009
920091158
ref: 92009
SCREW,4X16,BLACK
€ 2.50
92009A
920091163
ref: 92009A
SCREW,TAPPING,4X16
€ 2.50
92009B
920091172
ref: 92009B
SCREW,2X6,BLACK
€ 2.00
92009C
920091293
ref: 92009C
SCREW,3X22
€ 2.50
92015
920151193
ref: 92015
NUT,FLANGED,6MM
€ 0.50
92022
92022263
ref: 92022
WASHER,PLAIN,6MM
€ 1.50
92069
920691007
ref: 92069
BULB,12V3.4W
€ 2.50
92069A
920691059
ref: 92069A
BULB,12V 1.7W
€ 2.50
92075
920751581
ref: 92075
DAMPER,METER BRACKET
€ 4.00
92077
920771056
ref: 92077
KNOB,METER
€ 7.00
