FRAME FITTING

AR125A3 1985 UNITED KINGDOM FR GR ST SD

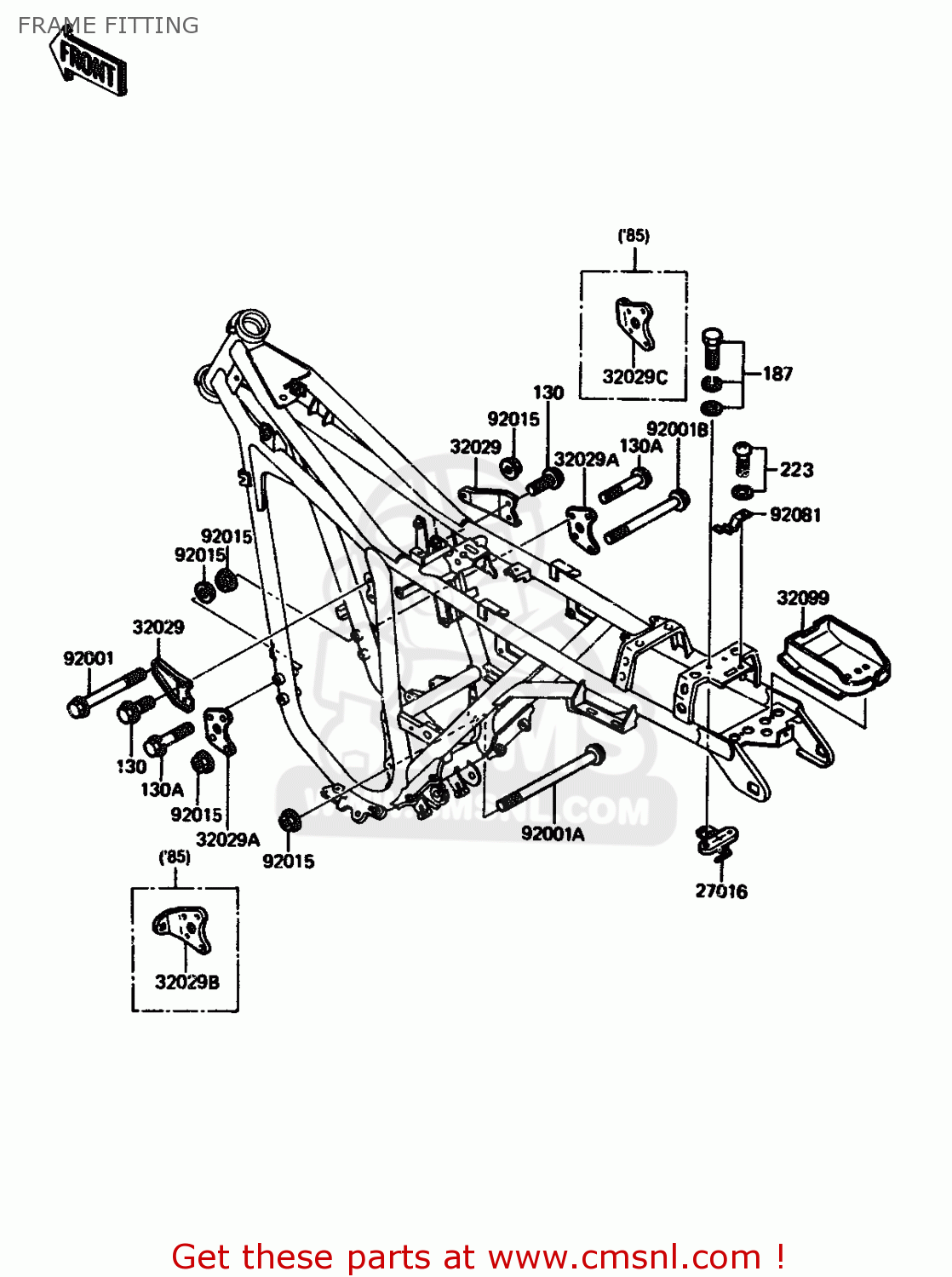

Frame fitting diagram AR125A3 1985 UNITED KINGDOM FR GR ST SD

prices are in EUR

ref

part #

description

quantity

27016

270161008
ref: 27016

LOCK-ASSY,SEAT

€ 14.00

32029

320291239
ref: 32029

BRACKET-ENGINE,HEAD

€ 6.00

32029B

320291343
ref: 32029B

BRACKET-ENGINE,LH

€ 5.50

32029C

320291344
ref: 32029C

BRACKET-ENGINE,RH

€ 5.50

32099

320991031
ref: 32099

CASE,SEAT COVER

€ 13.00

92001

920011640
ref: 92001

BOLT,FLANGED,8X80,BLA

€ 3.00

92001A

920011784
ref: 92001A

BOLT,FLANGED,8X110

€ 3.50

92001B

920011785
ref: 92001B

BOLT,FLANGED,8X98

€ 6.00

92015

920151183
ref: 92015

NUT,FLANGED,8MM,BLACK

€ 1.00

92081

920811489
ref: 92081

SPRING,SEAT LOCK

€ 2.00

130

130J0814
ref: 130

BOLT-FLANGED,8X14

€ 2.50

130A

130J0850
ref: 130A

BOLT-FLANGED,8X50

€ 2.50

187

187B0614
ref: 187

BOLT-UPSET-WSP

€ 0.50

223

223B0512
ref: 223

SCREW-PAN-WS-CROS

€ 2.50
