ENGINE COVER(S)
AN110D2 KAZER 2000 CANADA

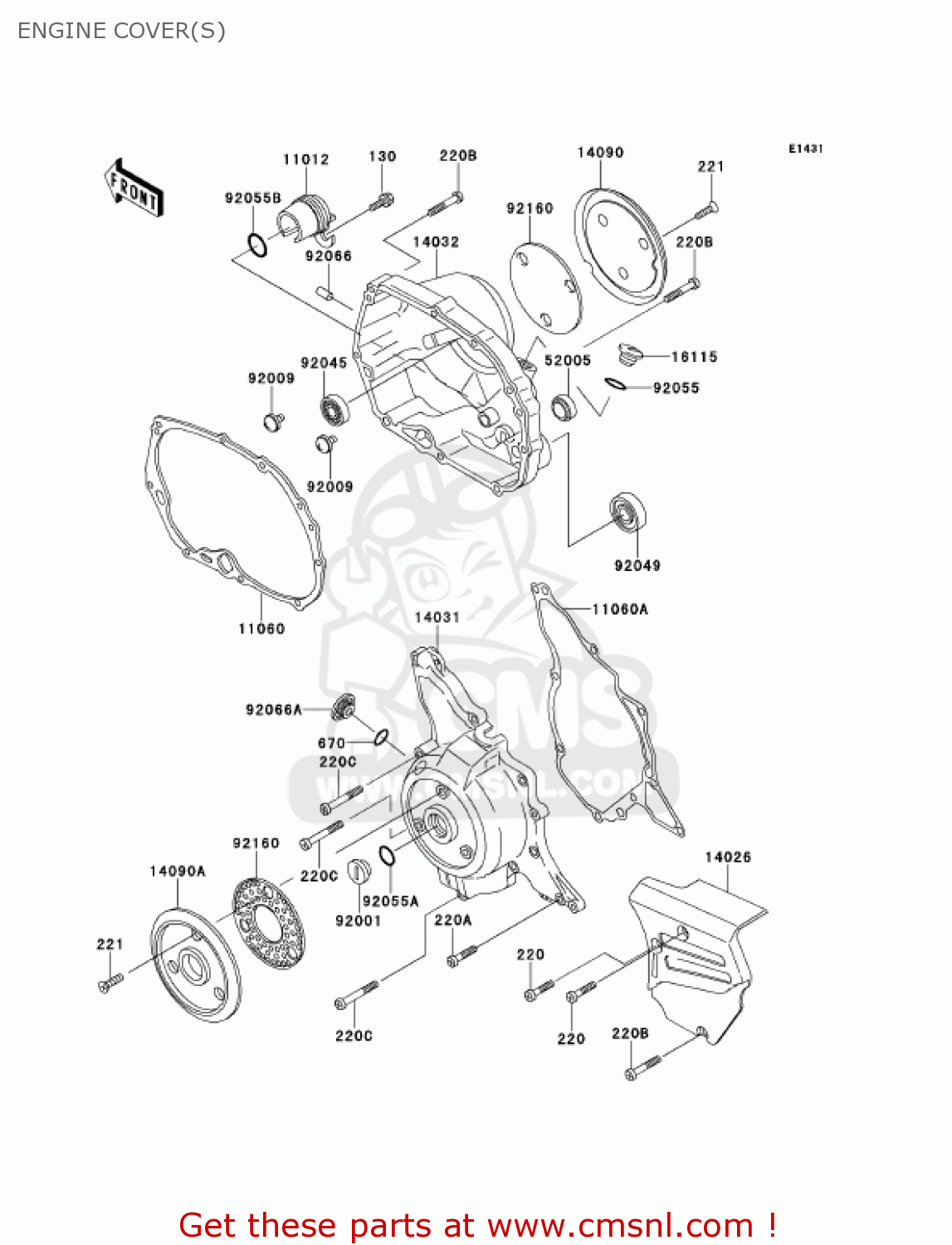

Engine cover(s) diagram AN110D2 KAZER 2000 CANADA
ENGINE COVER(S) AN110D2 KAZER 2000 CANADA
×
prices are in EUR
ref
part #
description
quantity
130
130Y0616
ref: 130
BOLT-FLANGED
€ 2.00
220
220X0620
ref: 220
SCREW-PAN-CROS
€ 3.00
220A
220X0625
ref: 220A
SCREW-PAN-CROS
€ 2.50
220B
220X0635
ref: 220B
SCREW-PAN-CROS
€ 2.50
220C
220X0645
ref: 220C
SCREW-PAN-CROS
€ 2.50
221
221B0510
ref: 221
SCREW-CNTSNK HD,5X10
€ 2.50
670
670B2016
ref: 670
O RING,16MM
€ 1.00
11012
110121931
ref: 11012
OIL FILTER CAP
€ 16.50
11060
110601374
ref: 11060
CLUTCH CRANKCASE COVER GASKET
€ 5.00
11060A
110601375
ref: 11060A
GENERATOR COVER GASKET
€ 3.50
14026
140261199
ref: 14026
CHAIN COVER
€ 35.50
14031
140311289
ref: 14031
GENERATOR COVER
€ 59.50
14032
140321503
ref: 14032
CLUTCH COVER
€ 104.50
14090
140901376
ref: 14090
CLUTCH CAP COVER
€ 14.50
14090A
140901411
ref: 14090A
GENERATOR CAP COVER
€ 16.50
16115
161151067
ref: 16115
CAP-OIL FILLER
€ 9.50
52005
520051055
ref: 52005
GAUGE,OIL LEVEL
€ 10.50
92001
920011827
ref: 92001
BOLT,GENERATOR COVER
€ 4.00
92009
920091745
ref: 92009
SCREW
€ 2.00
92045
920451294
ref: 92045
BALL BEARING,6001RUSH
€ 11.50
92049
920491430
ref: 92049
SEAL-OIL
€ 9.50
92055
92055049
ref: 92055
'0'RING,31MM
€ 2.50
92055A
920551136
ref: 92055A
RING-O,OILPAN CAP
€ 3.00
92055B
920551259
ref: 92055B
RING-O,20.8X1.9
€ 4.50
92066
920661012
ref: 92066
PLUG,OIL LINE,7.2X8
€ 4.00
92066A
920661196
ref: 92066A
PLUG,IDLE
€ 1.50
92160
921601491
ref: 92160
DAMPER
€ 2.00
